Integrating Snapshots Into CI

GitHub

The GitHub integration brings Snapshots directly into your pull request workflow by adding status checks. This alerts reviewers to any visual changes a pull request introduces, and requires approval before the check passes.

Snapshots works by comparing a head vs. base build, similar to how code review compares your new code to the baseline code.

Installation

1. Install the Sentry GitHub App by following the installation instructions in the GitHub integration documentation.

   a. If you have previously installed the Sentry App, ensure you have accepted the latest permissions to receive status checks.

   b. GitHub Enterprise users: After installing the GitHub Enterprise app, navigate to Settings > Developer Settings > GitHub Apps > [your Sentry app] > Edit > Permissions & events and confirm the following are set:

   • Repository permissions: Checks — Read & write
   • Repository permissions: Pull requests — Read & write
   • Subscribe to events: Check run

2. Generate snapshots in your build using the tool that fits your platform. Common options include:

   • Playwright (web)
   • Paparazzi or Roborazzi
   • XCUITest snapshots
   • Laravel Dusk (PHP)
   • Any tool that produces PNG or JPEG files

   For a production reference, see Sentry's frontend-snapshots.yml workflow.

3. Modify an existing workflow or create a new workflow to upload snapshots on pushes to your main branch and on pull requests:

name: Sentry Snapshots Upload

on:
  push:
    branches: [main]
  pull_request:
    branches: [main]

jobs:
  snapshots:
    # Add your snapshot generation step here
    # Then upload with `sentry-cli snapshots upload` — see /product/snapshots/uploading-snapshots/

name: Sentry Snapshots Upload

on:
  push:
    branches: [main]
  pull_request:
    branches: [main]

jobs:
  snapshots:
    # Add your snapshot generation step here
    # Then upload with `sentry-cli snapshots upload` — see /product/snapshots/uploading-snapshots/

Confirm that snapshots uploaded on push have the correct head-sha and no base-sha set, and that snapshots uploaded on pull_request have both head-sha and base-sha set.

4. Confirm the status check appears

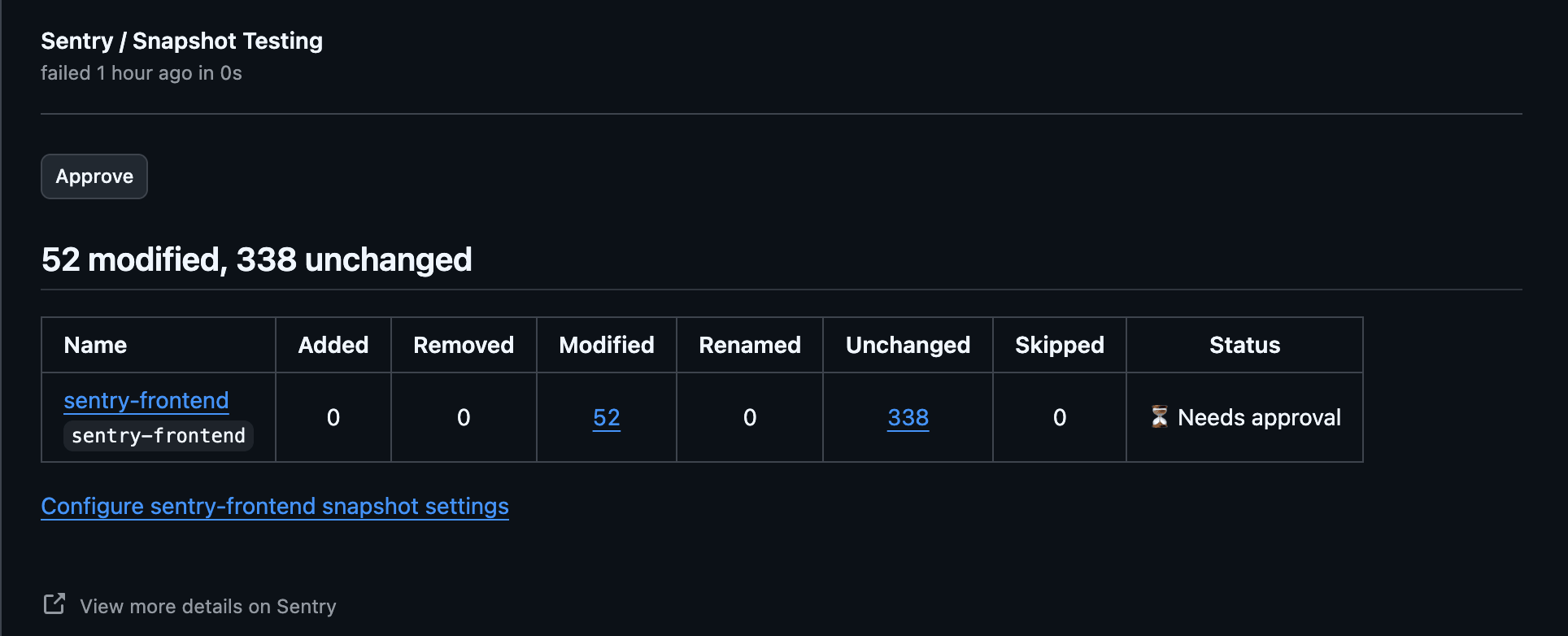

After configuring the workflow, a Snapshot Testing status check will appear on every pull request.

For details on the review and approval flow, see Reviewing Snapshots.

Skip the Status Check When No Snapshots Are Uploaded

Your team may require a Snapshot Testing check on every pull request, even when some CI workflows don't produce snapshots. For example, a pull request that changes only documentation or other files that don't affect the rendered UI may not need new snapshots. In these cases, use the skip endpoint to create a neutral check for the pull request's head commit so that it can merge without generating unnecessary snapshots.

The example below assumes an earlier path-filtering step with an ID of changes sets a should_upload output. Use the same condition for your upload step and the inverse condition for the skip step so that only one runs. Reuse the SENTRY_AUTH_TOKEN configured for uploads and store it as an encrypted GitHub Actions secret.

- name: Mark Snapshot Testing as skipped
  if: github.event_name == 'pull_request' && steps.changes.outputs.should_upload == 'false'
  env:
    SENTRY_AUTH_TOKEN: ${{ secrets.SENTRY_AUTH_TOKEN }}
    SENTRY_ORG: ${{ secrets.SENTRY_ORG }}
    SENTRY_PROJECT: ${{ secrets.SENTRY_PROJECT }}
    HEAD_SHA: ${{ github.event.pull_request.head.sha }}
  run: |
    jq -n \
      --arg sha "$HEAD_SHA" \
      --arg repository "$GITHUB_REPOSITORY" \
      '{sha: $sha, repository: $repository, provider: "github"}' |
      curl --fail-with-body \
        --request POST \
        --header "Authorization: Bearer $SENTRY_AUTH_TOKEN" \
        --header "Content-Type: application/json" \
        --data-binary @- \
        "https://sentry.io/api/0/projects/$SENTRY_ORG/$SENTRY_PROJECT/preprod/snapshots/status-checks/skip/"

- name: Mark Snapshot Testing as skipped
  if: github.event_name == 'pull_request' && steps.changes.outputs.should_upload == 'false'
  env:
    SENTRY_AUTH_TOKEN: ${{ secrets.SENTRY_AUTH_TOKEN }}
    SENTRY_ORG: ${{ secrets.SENTRY_ORG }}
    SENTRY_PROJECT: ${{ secrets.SENTRY_PROJECT }}
    HEAD_SHA: ${{ github.event.pull_request.head.sha }}
  run: |
    jq -n \
      --arg sha "$HEAD_SHA" \
      --arg repository "$GITHUB_REPOSITORY" \
      '{sha: $sha, repository: $repository, provider: "github"}' |
      curl --fail-with-body \
        --request POST \
        --header "Authorization: Bearer $SENTRY_AUTH_TOKEN" \
        --header "Content-Type: application/json" \
        --data-binary @- \
        "https://sentry.io/api/0/projects/$SENTRY_ORG/$SENTRY_PROJECT/preprod/snapshots/status-checks/skip/"

This example is configured for GitHub.com. For GitHub Enterprise, set provider to github_enterprise.

Troubleshooting

Status Check Not Appearing

Check that:

• The Sentry GitHub App is installed and has access to your repository.
• You're uploading snapshots from both your main branch (on push) and your pull request branches (on pull_request).
• The --app-id value matches between the head and base uploads.
• Your uploads include the correct git metadata (auto-detected in CI).

Missing Base Build

The first time you set up Snapshots, your main branch may not have any uploads yet:

1. Merge a PR or push to your main branch to trigger an upload.
2. Future PRs will be able to compare against this base build.

Wrong Base Snapshot Selected

If diffs look unexpected, the wrong base may be selected. When checking out the PR commit, use the PR head SHA (not the merge commit) so Sentry resolves the correct base:

- uses: actions/checkout@v4
  with:
    ref: ${{ github.event.pull_request.head.sha || github.sha }}

- uses: actions/checkout@v4
  with:
    ref: ${{ github.event.pull_request.head.sha || github.sha }}
